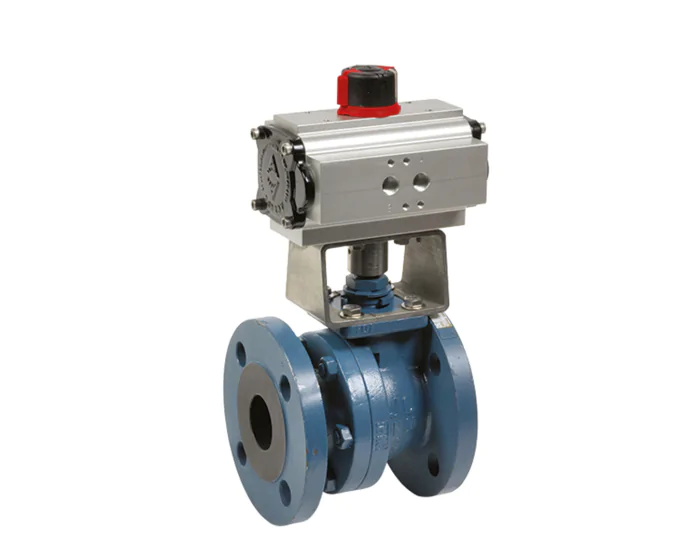

The 540AIS seriesJC VALVES ball valve has an A216WCB steel body, a CF8M carbon steel ball and STANSIT seats. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 170.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Position | Normally closed |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | PTFE-Stainless steel |
| Ball material | CF8M |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Double acting Flanged PN16 | 516AIS065015103 | S1002656 |
€931.39
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Spring return Flanged PN16 | 516AIS065016105 | S1002657 |
€1,138.01
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Spring return Flanged PN16 | 516AIS080016106 | S1002658 |
€1,462.84
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN125 - 5'' Spring return Flanged PN16 | 516AIS125016107 | S1002659 |
€3,283.29
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Spring return Flanged PN40 | 516AIS150016108 | S1002660 |
€7,656.86
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Double acting Flanged PN40 | 540AIS015015100 | S1002661 |
€420.09
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Spring return Flanged PN40 | 540AIS015016101 | S1002662 |
€463.57
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Double acting Flanged PN40 | 540AIS020015100 | S1002663 |
€449.69
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Spring return Flanged PN40 | 540AIS020016102 | S1002664 |
€521.91
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Double acting Flanged PN40 | 540AIS025015101 | S1002665 |
€482.13
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Spring return Flanged PN40 | 540AIS025016102 | S1002666 |
€550.87
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Double acting Flanged PN40 | 540AIS032015101 | S1002667 |
€626.30
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Spring return Flanged PN40 | 540AIS032016102 | S1002668 |
€684.53
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Spring return Flanged PN40 | 540AIS040016103 | S1002669 |
€693.13
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Double acting Flanged PN40 | 540AIS050015102 | S1002670 |
€713.17
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Spring return Flanged PN40 | 540AIS050016104 | S1002671 |
€846.51
(excl. btw)
|
add to cart |
